• Compact design
• Set temperature
• High switching capacity
Temperature’s scale adjustment:
After almost two days from the installation, to obtain a precjse scale adjustment, measure the room temperature with a reference thermometer, placed aside the thermostat, Holding the shagrened part of the Knob, turn the index with a coin, to reach the same value of the thermometer, We suggest to install the equipment at about 1.5 mt from the floor and from any heat source.
Technical Data
TSS-7000 | |
Operating Voltage | 230VAC |
Max Load | 16A |
Temperature Range | 0-40°C |
Function | heating, cooling |
Switching Differential | ±4K |
Sensor | TSS-7000A/7000B: internal |
Ambient Temperature | -10~50°C |
Protect Class | IP20 |
Material | fireproof UL 94 V-0 |
Sensor Type | TSS-7000A/7000B: thermostatic bimetal |
Art. No. | Control Type | Control Type | Description |
TSS-7000A | Mechanical type | NO+NC type | with internal thermostatic bimetal sensor |
TSS-7000A1 | Mechanical type | NO type | with internal thermostatic bimetal sensor |
TSS-7000A2 | Mechanical type | NO type | with internal thermostatic bimetal sensor |
TSS-7000B | Mechanical type | with switch, NO+NC type | with internal thermostatic bimetal sensor |
TSS-7000B1 | Mechanical type | with switch, NO type | with internal thermostatic bimetal sensor |
TSS-7000B2 | Mechanical type | with switch, NC type | with internal thermostatic bimetal sensor |
Important
Accelerating resistance with voitage to 220-250V a.c.
This thermostat is provided with an accelerating resistance which must be absolutely connected in order to obtain the regulation’s performances. The terminal 4 has thus to be connected to the neutral according to the diagram shown on the cover, This connection allows also the wording of the pilot lamp which indicates the operation of the heating.

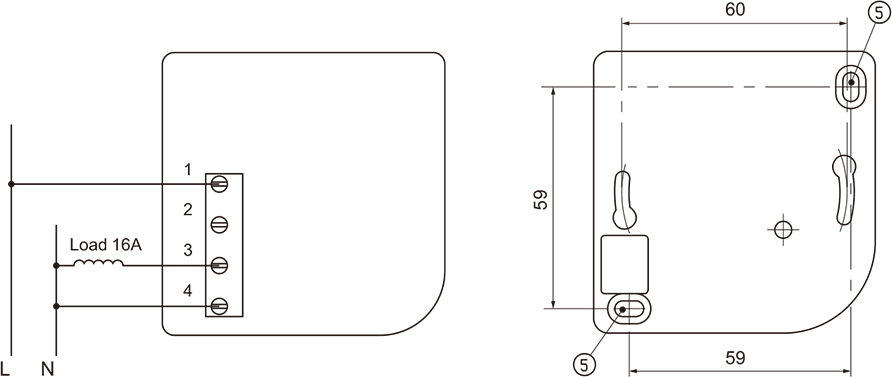

Wiring Diagram
