> Pressure clamp connectors
> Dynamic heating up
> Wide voltage range
> Energy saving
> Clip fixing
> Quick installation
These heaters are used in enclosures where damage from condensation must be prevented, or where the temperature may not fall below a minimum value. The aluminium profile heater body design has a chimney effect and distributes the heat evenly. The heaters are designed for permanent operation. Pressure clamb connectors save time and simplify installation.
Technical Data
HG 140 | |
Operating voltage | 120-240V AC/DC¹ (min. 110V, max. 265V) |
Heating element | PTC resistor - temperature limiting |
Heater body | extruded aluminium profile, anodised |
Connection | 3 pressure clamps for stranded wire 0.5-1.5mm² (with wire end ferrule) and rigid wire 0.5- 2.5mm² |
Connection casing | plastic according to UL94 V-0, black |
Mounting | clip for 35mm DIN rail, EN 60715 |
Fitting position | vertical airflow (air outlet up, connection on bottom) |
Operating/Storage temperature | -45 to +70°C (-49 to +158°F) |
Operating/Storage humidity | max. 90% RH (non-condensing) |
Protection type/Protection class | IP20 / I (earthed) |
Accessoires | screw fixing, Art. No. 09024.0-00 (1 packing unit = 2 pieces) |
Note | other voltages on request |
¹ Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.

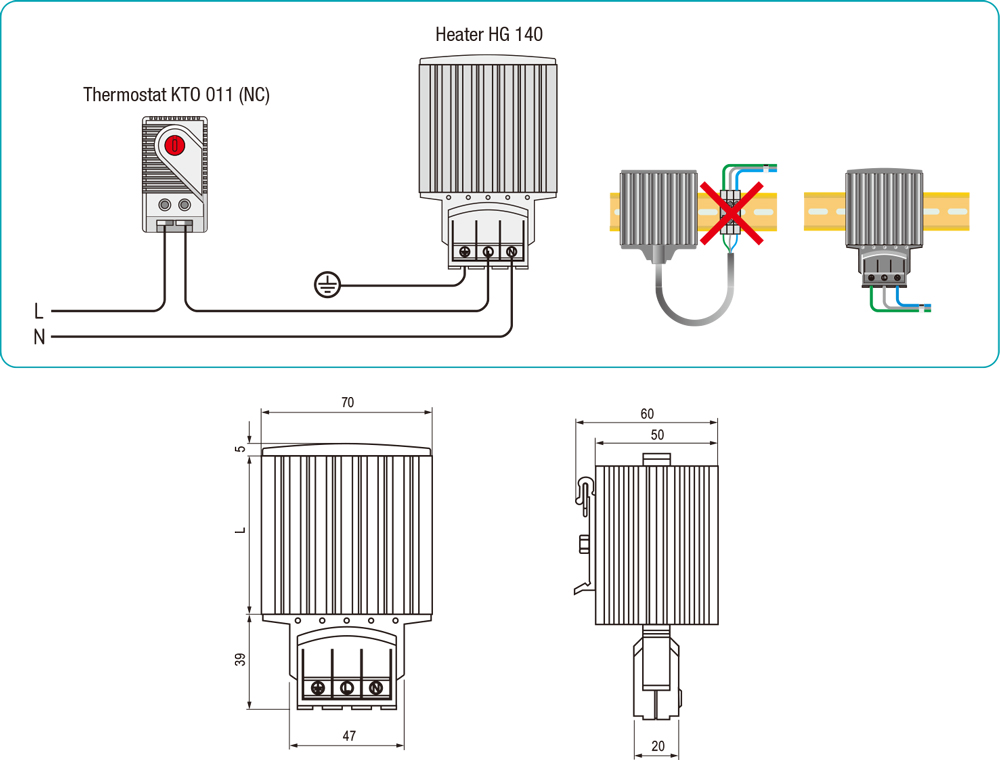

Example of connection
Art. No. | Heating capacity² | Length (L) | Weight (approx.) |
14000.0-00 | 15W | 65mm | 0.3kg |
14001.0-00 | 30W | 65mm | 0.3kg |
14003.0-00 | 45W | 65mm | 0.3kg |
14004.0-00 | 50W | 65mm | 0.3kg |
14005.0-00 | 60W | 140mm | 0.4kg |
14006.0-00 | 75W | 140mm | 0.5kg |
14007.0-00 | 100W | 140mm | 0.5kg |
14008.0-00 | 150W | 220mm | 0.7kg |
² at +20°C (+68°F) ambient temperature
