> Wide voltage range
> Dynamic heating up
> Energy saving
> Compact
These small heaters are designed to prevent condensation and to ensure a minimum operating temperature in small enclosures. The heaters are designed for permanent operation.
Technical Data
RC 016 | |
Operating voltage | 120-240V AC/DC¹ (min. 110V, max. 265V) |
Heating element | PTC resistor, temperature limiting |
Heater body | aluminium, anodised |
Mounting | screw fixing |
Fitting position | Variable |
Operating/Storage temperature | -45 to +70°C (-49 to +158°F) |
Operating/Storage humidity | max. 90% RH (non-condensing) |
Protection type/Protection class | IP54 / II (double insulated) |
Note | other voltages on request |
¹ Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.

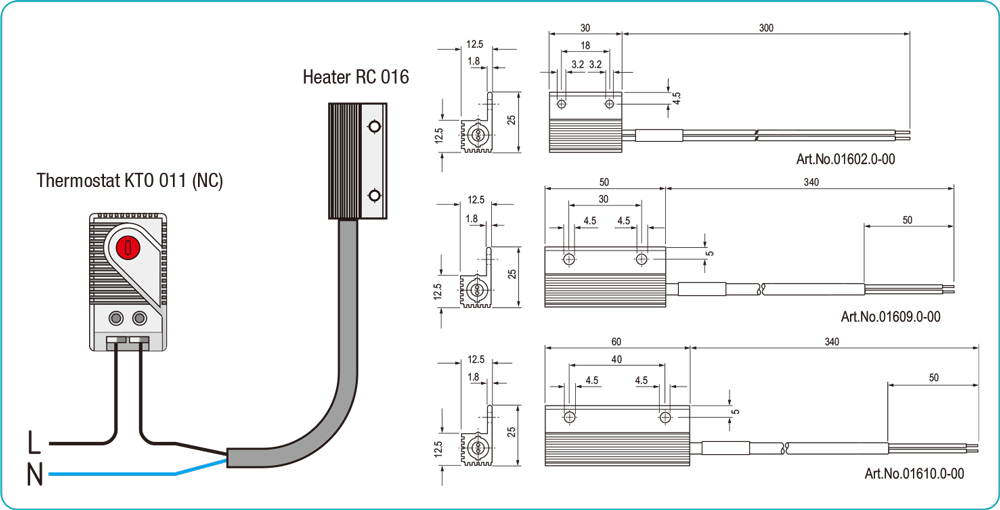

Example of connection
Art. No. | Heating capacity² | Connection | Weight (approx.) |
01602.0-00 | 8W | 2 x AWG 24 cable (silicone) | 20g |
01609.0-00 | 10W | 2 x AWG 24 cable (silicone) | 30g |
01610.0-00 | 13W | 2 x AWG 24 cable (silicone) | 40g |
² at +20°C (+68°F) ambient temperature
