• Dynamic heating up
• Energy saving
• Wide voltage range
The TSS 030 Mini series of radiant heaters consists of three versions with heating performance ratings of 10, 20 and 30 Watts.
The new mini-heaters are particularly suitable for use in small housings or for the heating of isolated spots in sensitive areas.
Technical Data
TSS 030 | |
Rated voltage | 120-260V AC/DC |
Functional range | 120-260V AC/DC 50/60Hz |
Duty cycle | 100% |
Operating temperature range | -40°C … +70°C (- 40°F … + 158°F) |
Storage temperature range | -40°C … +70°C (- 40°F … + 158°F) |
Installation orientation | as desired, preferably vertical |
Device construction | aluminium profile, black anodised |
Type of mounting | snap fastening for 35 mm profile bars according to EN 60715 |
Protection class | II |
Type of connection | connecting cable (300 mm) |
Protection type/Protection class | IP54 |

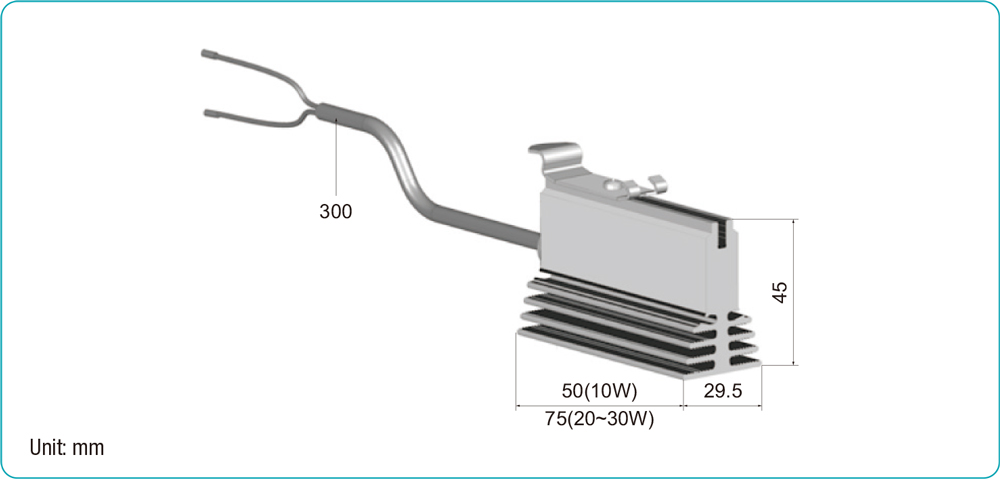

Dimensions
Art. No. | Power consumption | Starting current | Max. surface temperature | Weight (approx.) |
030010 | 10W | 1.0A | 95°C | 85g |
030020 | 20W | 1.1A | 115°C | 120g |
030030 | 30W | 1.2A | 140°C | 120g |
