• Wide voltage range
• Integrated power unit
• Long-lived and maintenance-free by LED technology
• Daisy chain
• On/off switch
• Screw fixing
• Length: 48cm
The lamp series LED 025-LS is suitable for all types of panels and enclosures, especially where space is at a premium. The lamps have a very long service life thanks to the use of LED technology. Three different fixing options provide more flexibility for installation. The power output allows up to 5 lamps to be connected to each other. Both the power input and output connectors snap lock into their sockets. With the integrated power unit and the plugs the lamp can quickly be connected.
Technical Data
LED 025-LS | |
Power consumption | max. 8W |
Luminosity | 800Lm |
Lamp type | LED, angle of radiation 120° light color: daylight, color temperature: 6,000K to 7,000K |
Service life | 60,000h at +20°C (+68°F) |
Connection | 2-pole connector with snap lock |
Mounting | magnet fixing or screw fixing (M5), torque 2Nm max. |
Casing | plastic, transparent |

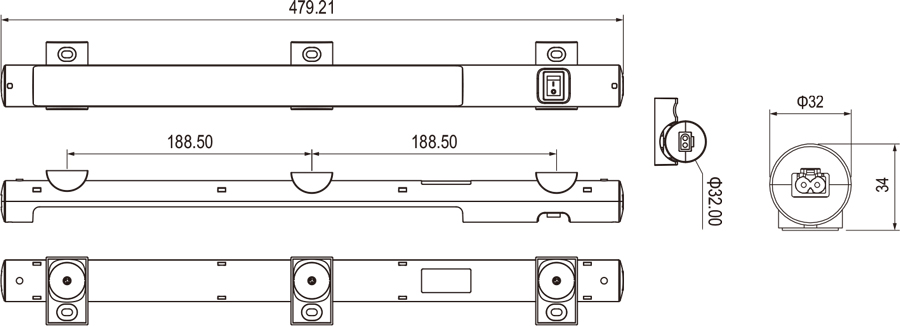

Dimensions | see drawings |
Weight | approx. 0.25kg |
Operating/Storage temperature | -30 to +60°C (-22 to +140°F) / -40 to +85°C (-40 to +185°F) |
Operating/Storage humidty | max. 90% RH (non-condensing) |
Protection type/Protection class | IP20 / II (double insulated) |
Mounting options: The lamps are available with magnet fixing for easy positioning in any steel cabinet or enclosure. A classic is the LED 025-LS with screw fixing.
Note: The lamp must not be used for household lighting.
Art. No. | Fixing type | Switch | Operating voltage |
025LS | Screw fixing | on/off light switch | 56-265VAC/DC(min. 56V, max. 265V) |
025LS-SOFT | Screw fixing | on/off light switch | 56-265VAC/DC(min. 56V, max. 265V) |
