General Specification

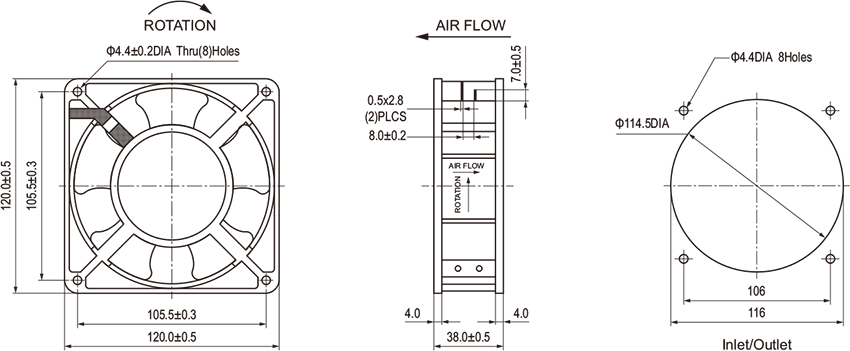

Size: 120×120×38mm
Airflow: 72-95CFM
Noise: 27-55dBA
Impeller: PBT Black
Frame: Aluminum Alloy
Terminals: 0.5mm
Lead Wire: AWG#22
Operation Temperature: -10°C~+65°C
Art. No. | Bearing | Voltage | Current | Power | Speed | Noise | Air Flow | |
m3/min | (CFM) | |||||||

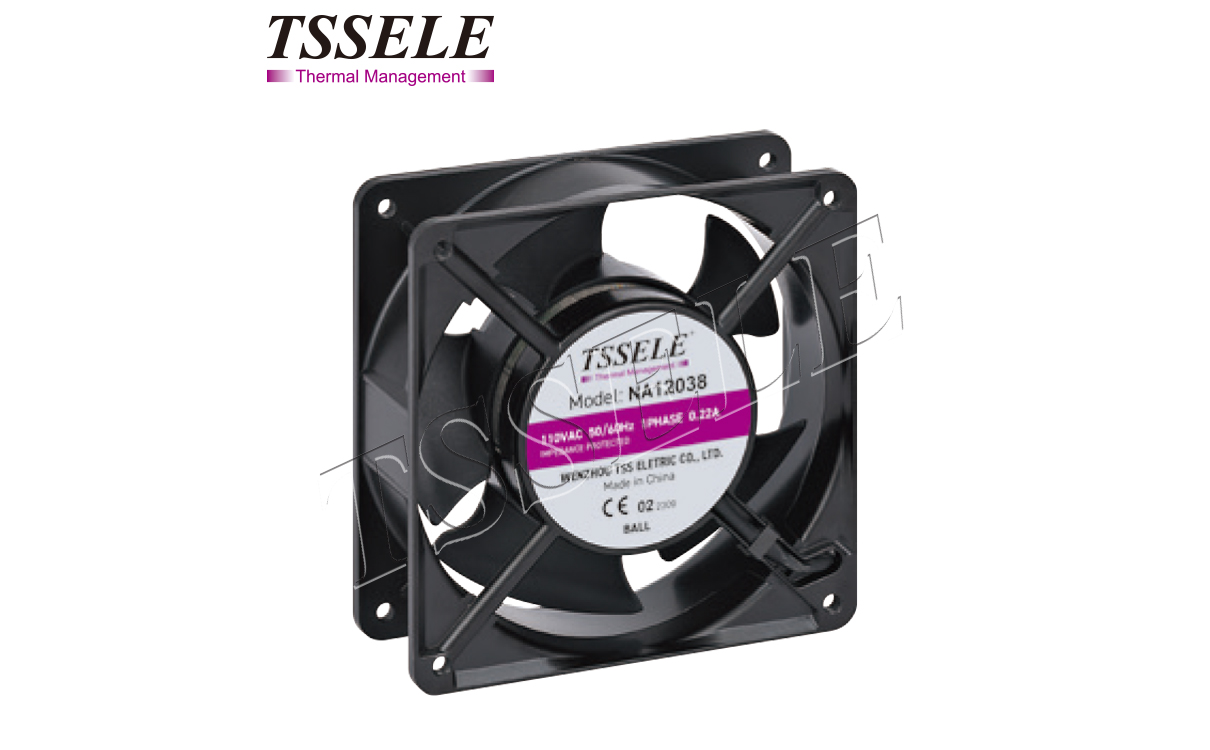

NA12038-ECA | Ball | 110-230 | 0.05 | 5.8 | 3000 | 40 | - | 95 |
NA12038-ECP | Ball | 110-230 | 0.04 | 6.3 | 3000 | 40 | - | 95 |
"B" means Ball, the current and the speed and airflow can be customer made. Sleeve type also can do.
