General Specification

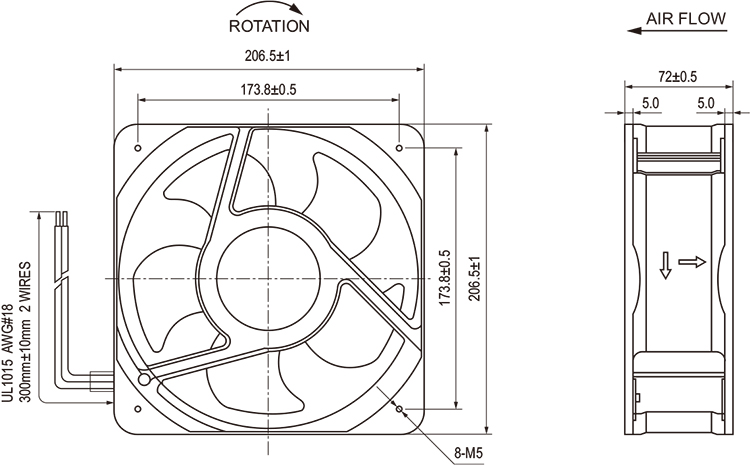

Size: 205×205×72mm
Airflow: 905~1248m3
/hr 533-735CFM
Weight: 2100g
Noise: 61~68dBA
Impeller: PBT Black
Frame: Aluminum Alloy
Terminals: 0.5mm
Lead Wire: AWG#24
Motor: Capacitor-Run Induction Motor
Operation Temperature: -10°C~+65°C
Art. No. | Bearing | Voltage | Freq. | Current | Power | Speed | Noise | Air Flow | Phase | |
M3/hr | (CFM) | |||||||||
NA20572-EC | EC | 110-230 | 50/60 | 0.80-0.44 | 63 | 2800 | 68 | 1092 | 643 | 1 |
"B" means Ball, Current, Speed can be customer made
