• Adjustable positioning without tools
• High switching capacity
• Double strain relief
• Different cladding diameters
• Suit for Lamp LED 025, LED 025-C and LED 035, LED 035-C Series.
The door switch monitors the position of cabinet doors and is available in three versions. For example, it can be used for switching a light when opening a door (NC), or to activate a fan when closing a door (NO). The version with change-over contact (CO) can be used as a normally closed and/or normally open contact. The wide mechanical adjustment range of the door switch DS 013 offers versatile application areas: the housing is adjustable within a 35mm range, while the screw flange with a slotted hole offers an additional 21 mm. The switching travel of the switch itself is another 8mm.
Technical Data
DS 013 | |
Operating Voltage: | all AC/DC voltage |
Max.switching capacity | 250VAC,8(1.5)A |
Service life | >10,000 cycles |
Connection | 4-pole clamp with strain relief, clamping torque 0.5Nm max. |
Mounting | screw fixing (M5) |
Casing | plastic according to UL94 V-0, grey/black |
Dimensions | 87×64×30mm |
Weight | approx.50g |
Operating /Storage temperature | variable |
Operating /Storage humidity | -20 to +85°C (-4 to +185°F) |
Protection type | max.90%RH (non-condensing) |

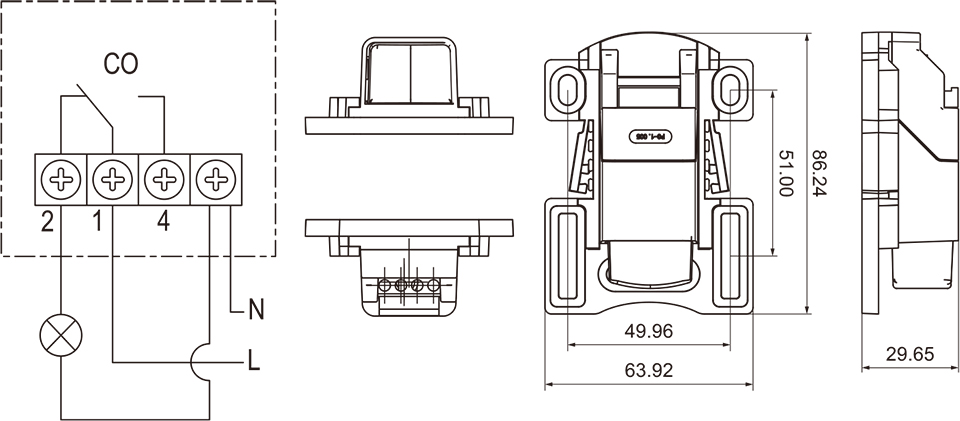

Connection Diagrams
Art. No. | Model | Suitable wire |
01350.0-00 | change-over (CO) | Cable round, stranded wire (with wire end ferrule) 0.75mm² to 1mm² |
