• Quickly connected
• Available with or without fuse

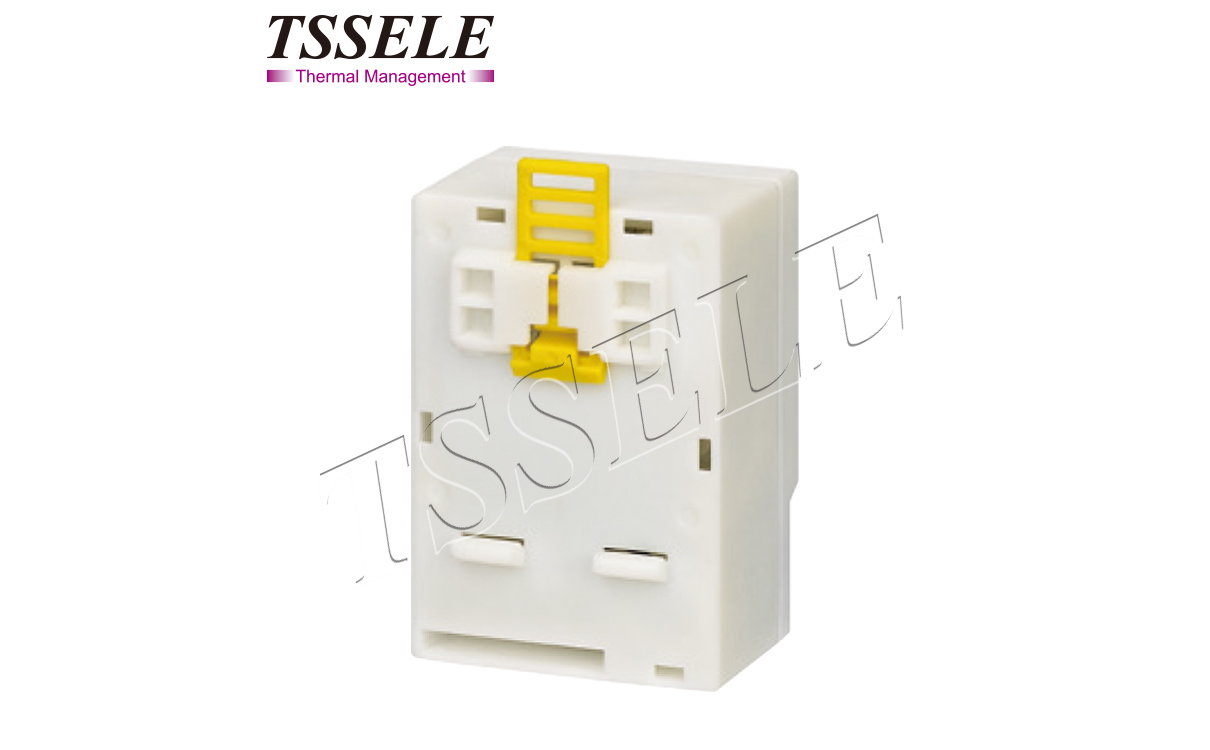

• Clip fixing
The DIN rail mounted electrical socket can be quickly fitted and connected in enclosures allowing the use of auxiliary products such as hand lamps, measuring devices, soldering irons etc. The unit is available with and without fuse and in many world socket standards.
Technical Data
NTL-S□□ | |
Connection | 3×pressure clamps for stranded and rigid wire 0.5-2.5mm² |
Mounting | clip for 35mm DIN rail, EN 60715 |
Casing | plastic according to UL94 V-0, light grey |
Dimensions | 92×62×48mm |
Weight | approx. 0.2kg |
Fitting position | variable |
Operating/Storage temperature | -45 to +70°C (-49 to +158°F) |
Operating/Storage humidity | max. 90% RH (non-condensing) |
Protection type/Protection class | IP20 / I (earthed) |

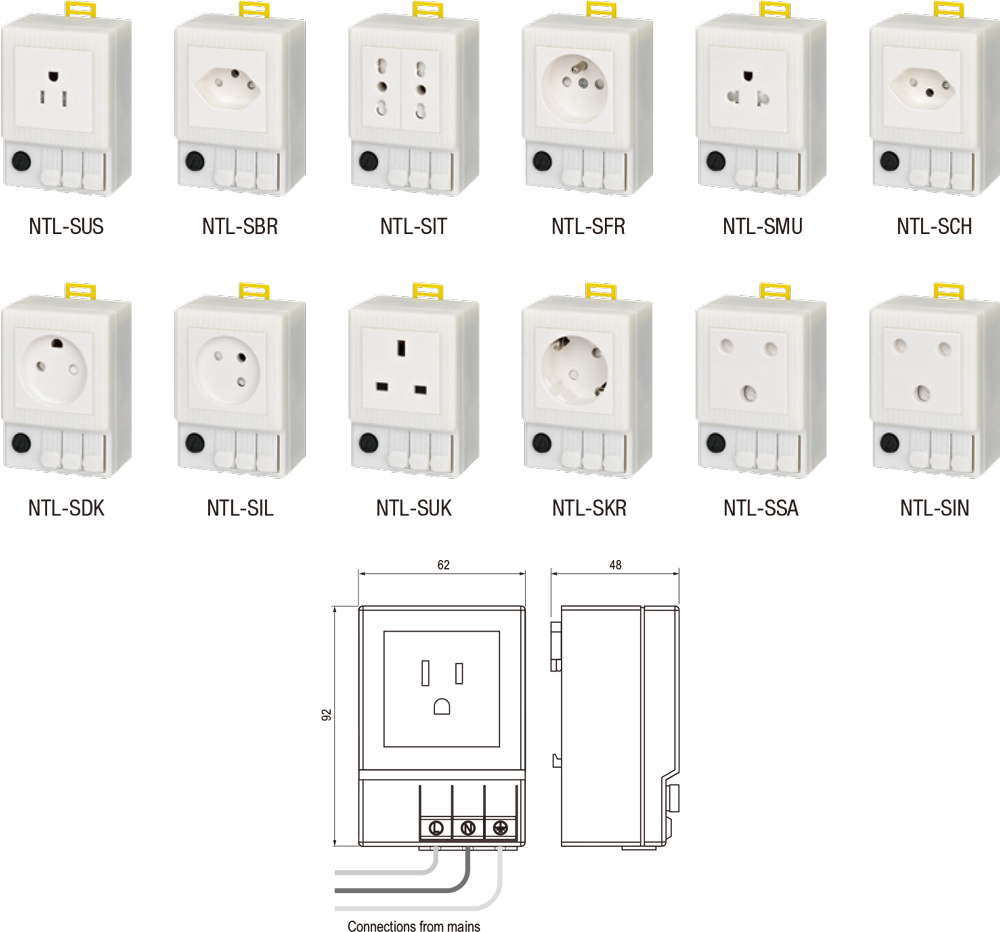

Art. No. | Operating Voltage | Nominal current | Socket type |
NTL-SEU | AC 250V | 16A | European Union Type Cabinet Socket, 16A |
NTL-SUS | AC 125V | 15A | US/Canada Type Cabinet Socket, 15A |
NTL-SBR | AC 250V | 10A | Brasil Type Cabinet Socket, 10A |
NTL-SIT | AC 250V | 16A | Italy Type Cabinet Socket, 16A |
NTL-SFR | AC 250V | 16A | FR/PL/CZ/SK Type Cabinet Socket, 16A |
NTL-SMU | AC 250V | 15A | Multiple Type,Southeast Asia Type,United States Type Cabinet Socket, 15A |
NTL-SCH | AC 250V | 10A | Switzerland Type Cabinet Socket, 10A |
NTL-SDK | AC 250V | 16A | Denmark Type Cabinet Socket, 16A |
NTL-SIL | AC 250V | 16A | Israel Type Cabinet Socket, 16A |
NTL-SUK | AC 250V | 13A | UK/Irland Type Cabinet Socket, 13A |
NTL-SKR | AC 250V | 16A | Korea Type Cabinet Socket, 16A |
NTL-SSA | AC 250V | 16A | South Africa Type Cabinet Socket, 16A |
NTL-SIN | AC 250V | 16A | India Type Cabinet Socket, 16A |
