• 35mm DIN rails
• Simple to mount
Din guide rail is a German industrial standard. Using guide rail is an installation method for industrial electrical components. The installation of electrical components that support this standard can be easily clipped on the guide rail without fixing with screws, and maintenance is also very convenient.
Product material: high-quality high-strength cold-rolled steel electroplating, aluminum alloy.
Product standard: European EN50022
Color variants: Nickel plated yellow, white zinc plated.
Operating temperature: -45°C continuous high temperature to 100°C
Product features: It is beautiful and has the function of anti-stress, the size is very accurate, and it is corrosion-resistant.
Others: MOQ is required for custom length or hole position.

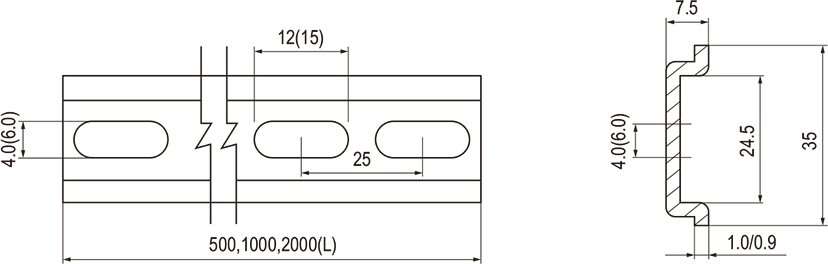

Technical Data
DIN Rail | |
Material | steel or aluminum |
Mounting | screw fixing |
Length | according to customer's requirement to cut |
Width | 35mm |
Screw pitch | 12.8mm, Ø3.6mm; for perforated 35mm DIN rails |
Operating/Storage temperature | -45 to +70°C (-49 to +158°F) |
Art No. | Material |
TSS-DIN-S | Steel |
TSS-DIN-A | Aluminum |
TSS-DIN-304 | 304 Stainless steel |
