• Compact design
• Set temperature
• High switching capacity
Temperature’s scale adjustment:
After almost two days from the installation, to obtain a precjse scale adjustment, measure the room temperature with a reference thermometer, placed aside the thermostat, Holding the shagrened part of the Knob, turn the index with a coin, to reach the same value of the thermometer, We suggest to install the equipment at about 1.5 mt from the floor and from any heat source.
Technical Data
TSS-2000 | |
Operating Voltage | 230VAC |
Max Load | 6A |
Temperature Range | 10°C-30°C |
Function | heating, cooling |
Sensor | internal |
Ambient Temperature | -20~30°C |
Protect Class | IP20 |
Material | fireproof UL 94 V-0 |
Sensor Type | gas tilled sylphon |
Note | with on/off switch,without LED indicator for power |
Art. No. | Control Type | Control Type | Description |
TSS-2000A | Mechanical type | With Internal Gas filled sylphon | Gas tilled sylphon |
TSS-2000B | Mechanical type | With on/off switch | Gas tilled sylphon |
TSS-2000C | Mechanical type | With LED indicator | Gas tilled sylphon |
TSS-2000D | Mechanical type | With on/off switch and LED indicator | Gas tilled sylphon |

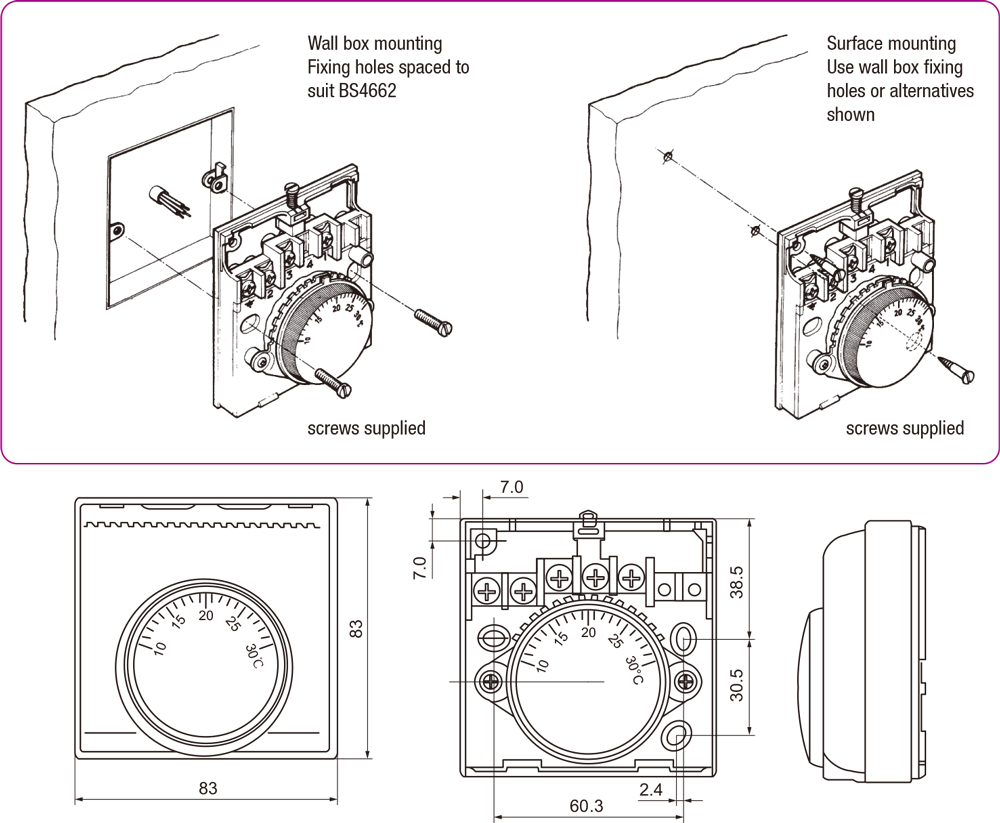

Mounting the Thermostat
